LT4 396 cu/in Stroker
Here is the start up of the build up of the engine.

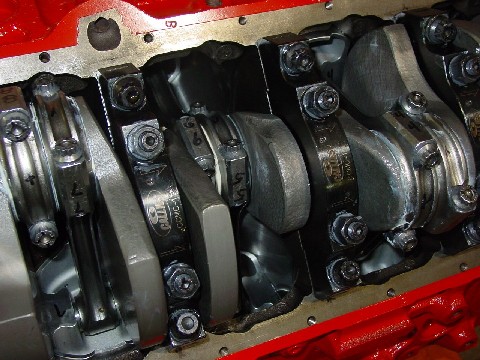

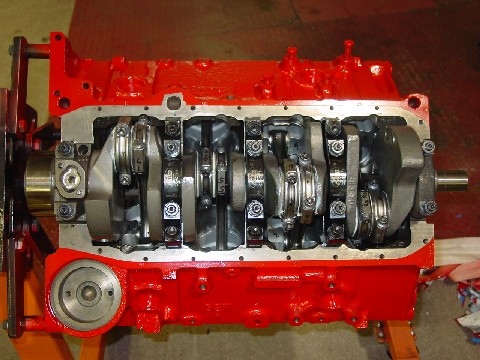

Lower Assembly Put Together

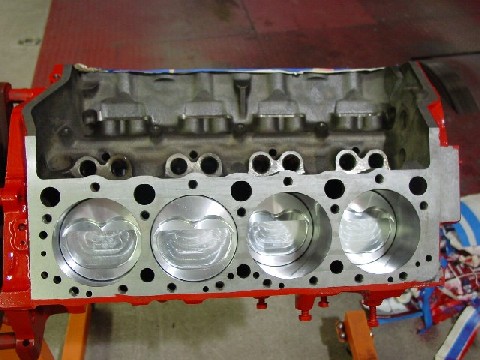

JE/SRP Pistons

Block Painted Red to Match LT4 Intake

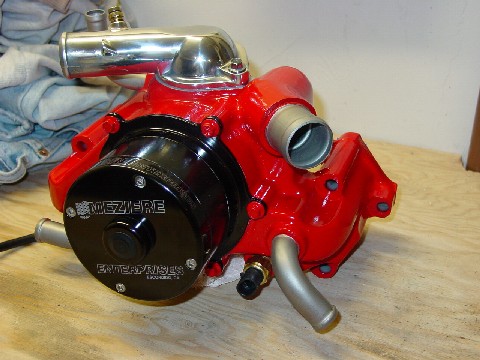

Meziere Water Pump

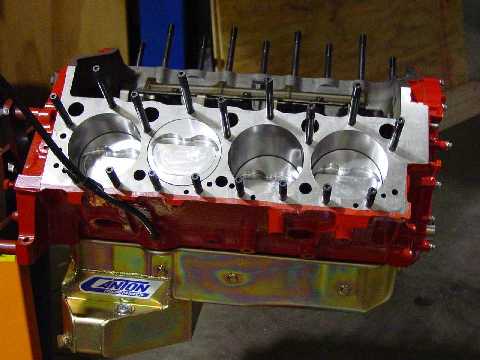

I added the Canton Pan and Head Studs

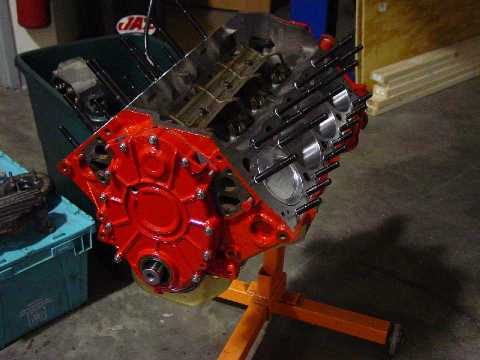

Powder Coated Timing Cover with ARP Polished Bolts

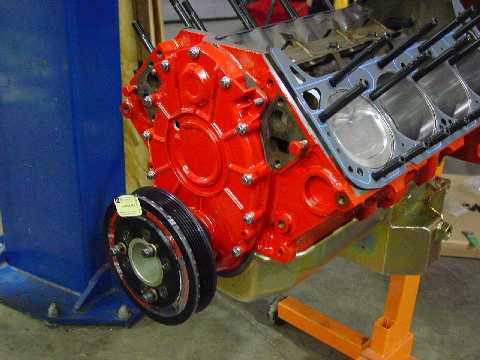

ATI Balancer

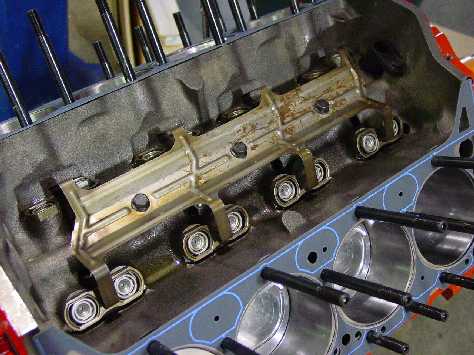

Crane Hydrolic Roller Lifters

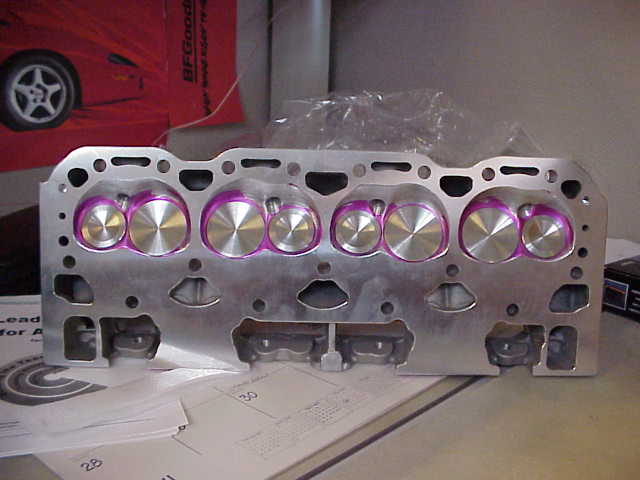

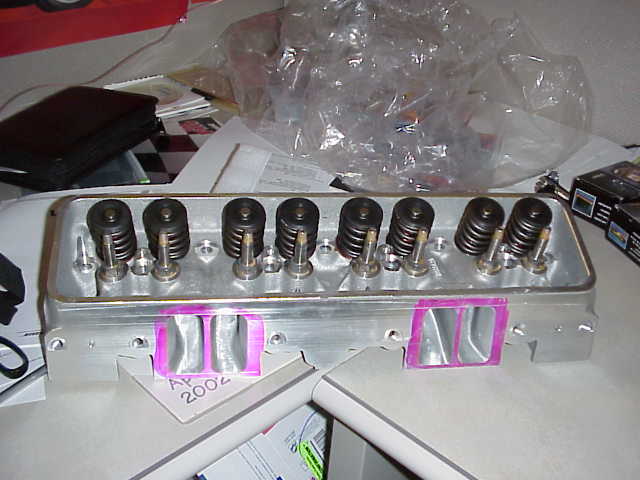

LT4 GTP Stage 2 Heads

Great Stage 2 Porting and Valve Job

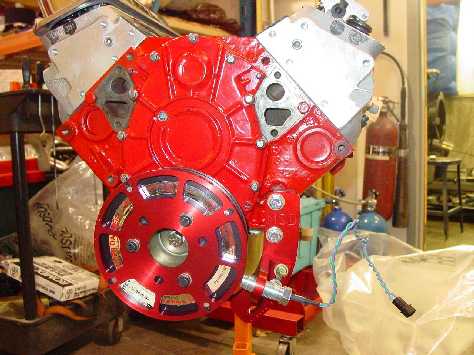

Heads installed with Crank Trigger and Wheel

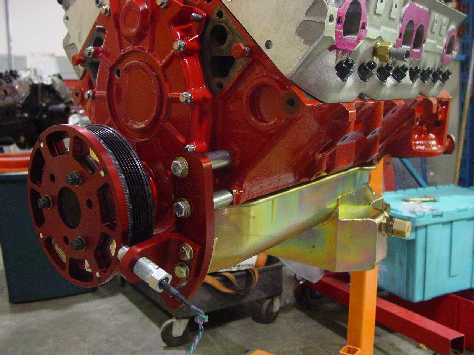

Custom Cut Mounting for Trigger

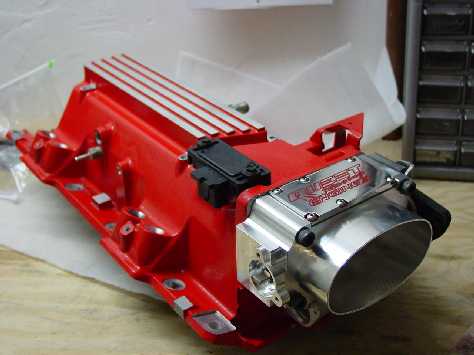

LT4 Intake ported for Monoblade

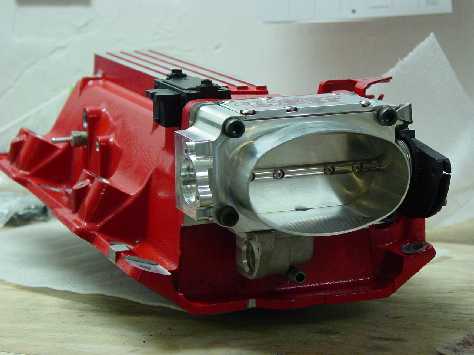

Arizona Speed & Marine Monoblade

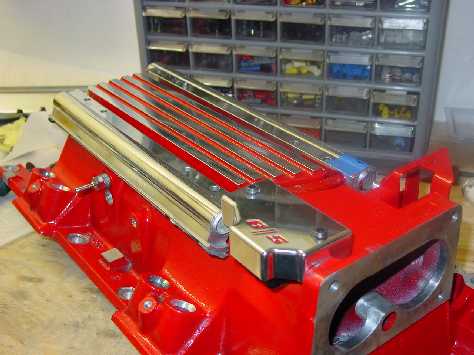

Polished Intake, Fuel Rails, and MAP Sensor Cover

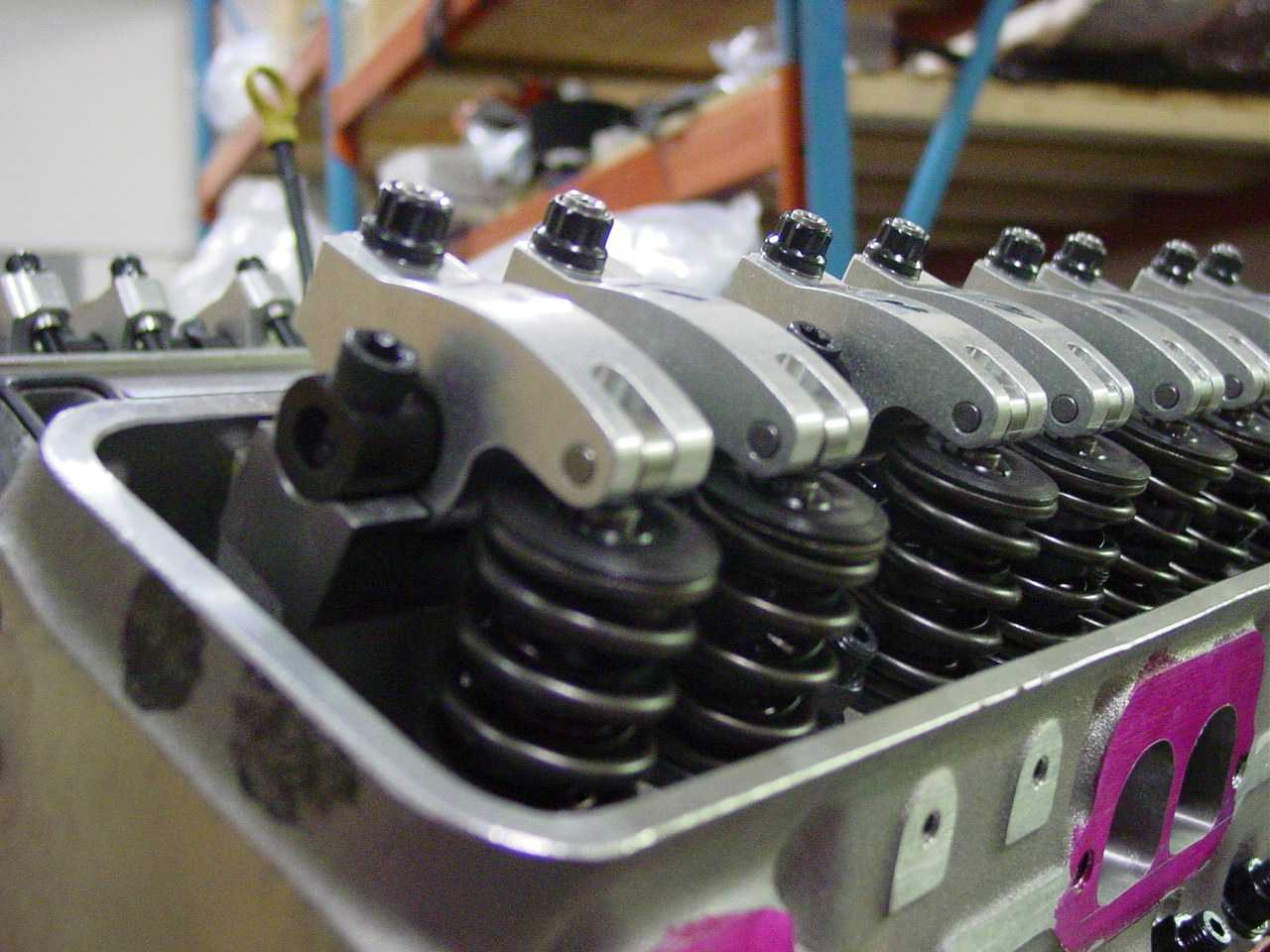

Jesel Shaft Mount Roller Rockers

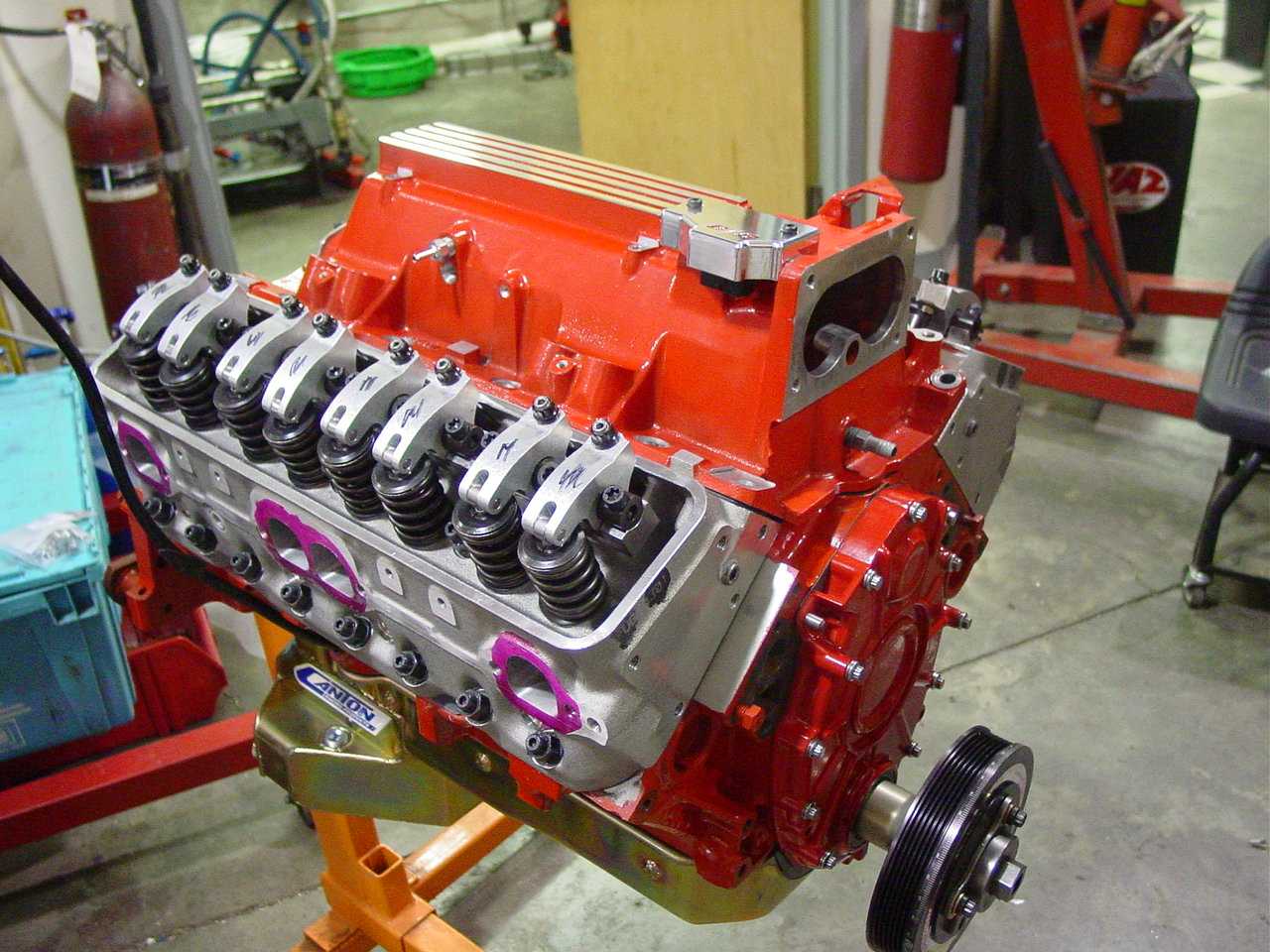

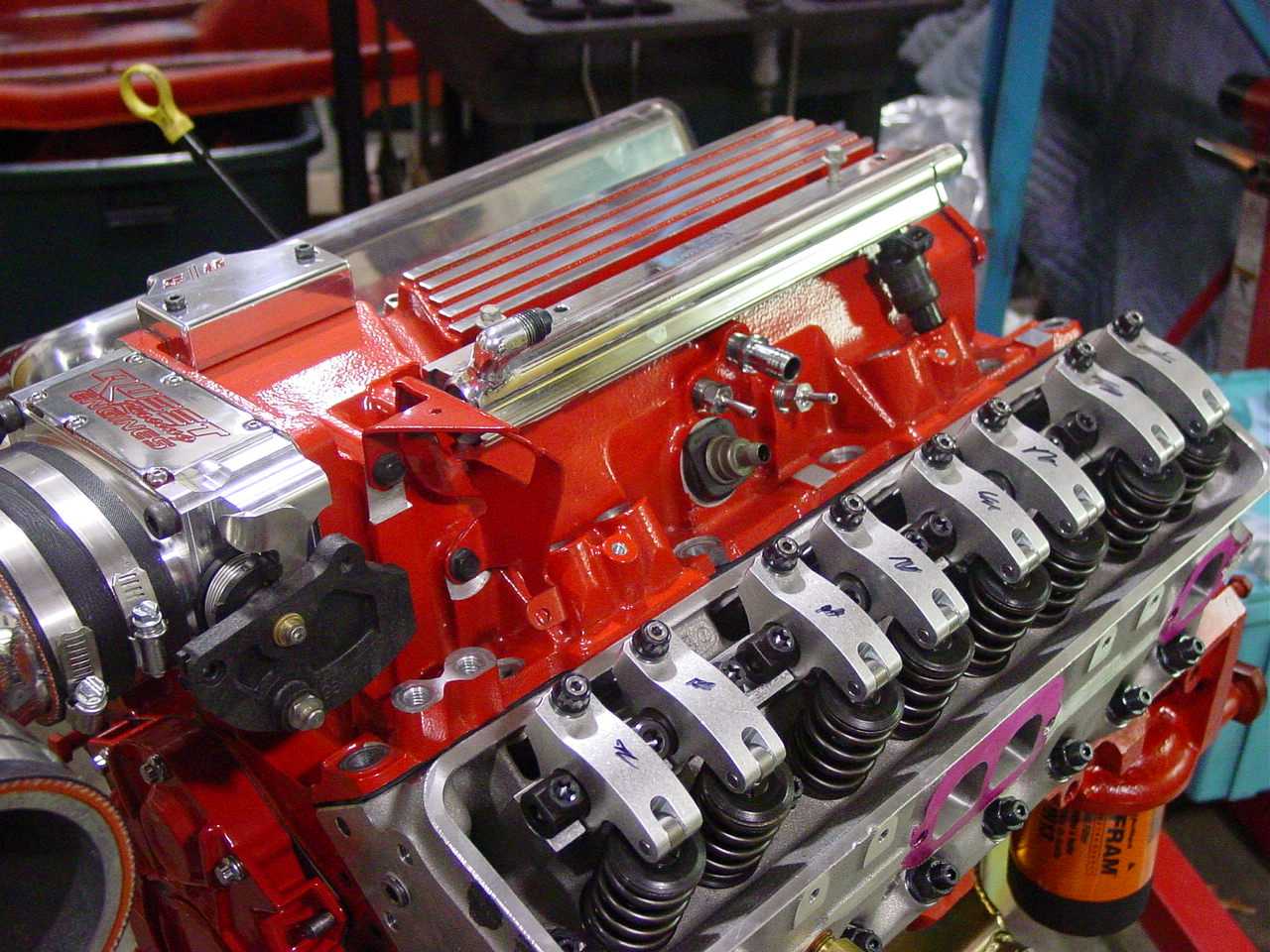

Intake and Jesel Rockers in Place

Block Off Plates on EGR Valve and EGR tube

Modified Fuell Rail Return with -6 AN 90degree

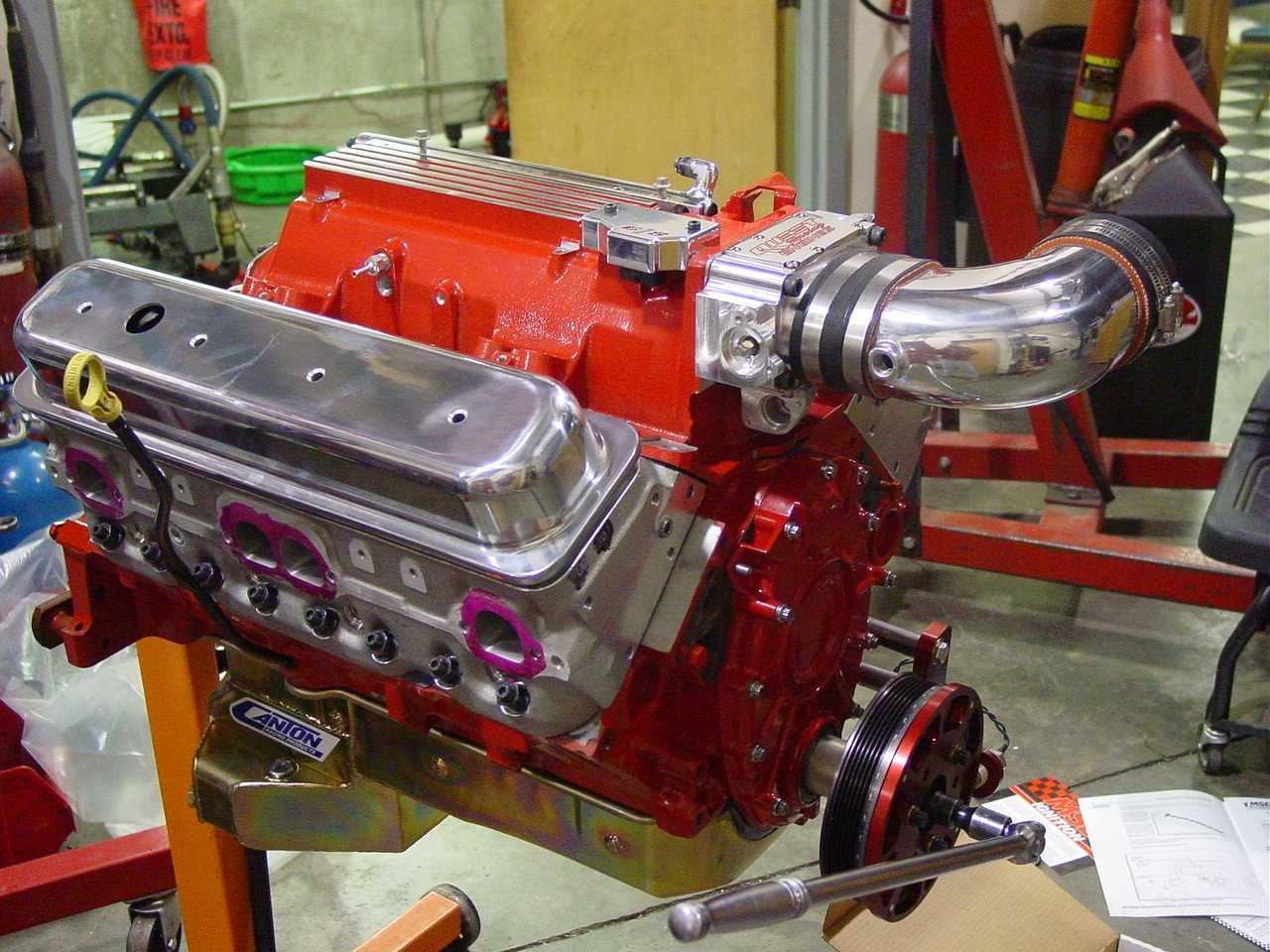

Polished Valve Covers and Vortech Intake Elbow

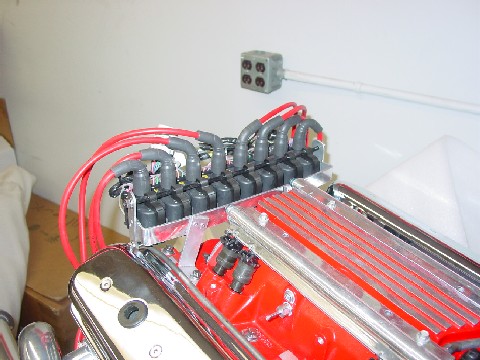

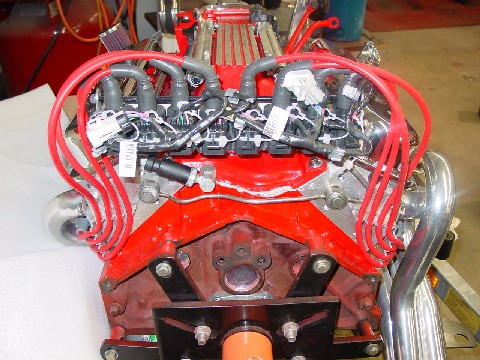

Dumped the Opti-Spark for LS1 Coils

Custom cut MSD wires and Custom Mounting Bracket

Connecting the Waterlines and F.A.S.T. Computer

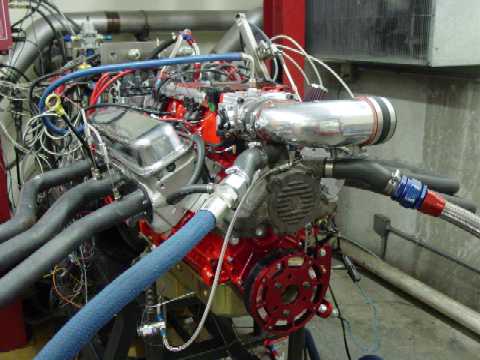

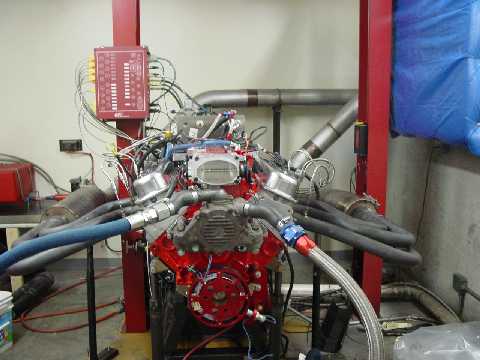

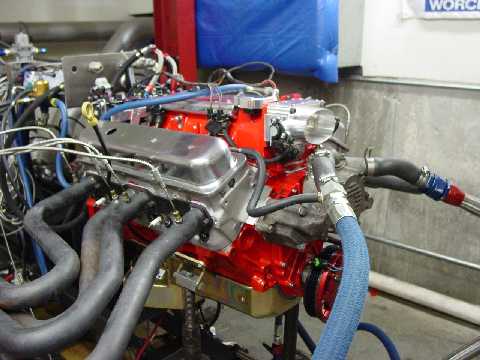

Finished Connecting to the Dyno

Ready for the tuning, Made over 563hp 512tq w/75 shot NOS 650hp 620tq

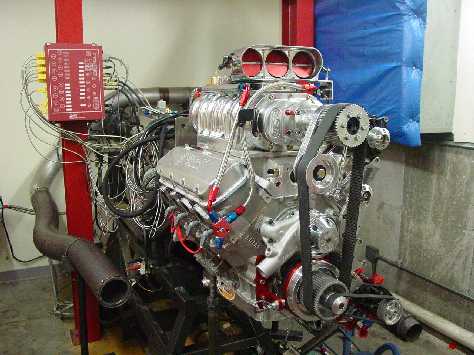

This Motor was on the dyno before mine, 1160hp

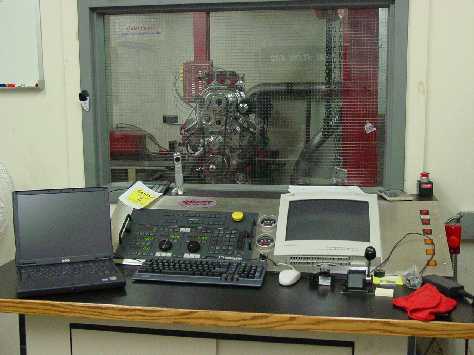

Dyno Control Room

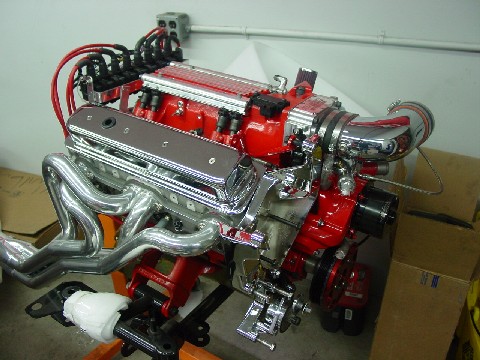

Parts back from the Chrome Shop

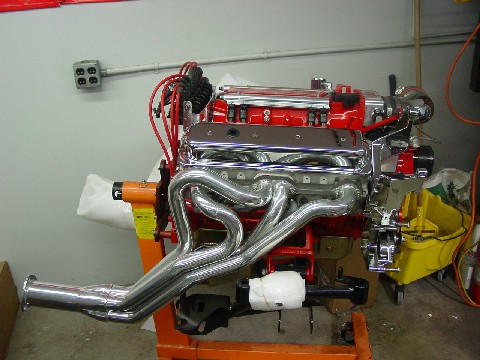

Valve Covers, Alternator Bracket, and Intake Tube got Chromed

Which Plate should I get?????
